BC378 is a Bipolar NPN device produced by Semelab. Its maximum working voltage is 25V and the maximum continuous current is 1A. The device is packaged in a TO18 metal package and has a cylindrical appearance with dimensions of 5.84mm*5.31mm*4.95mm.

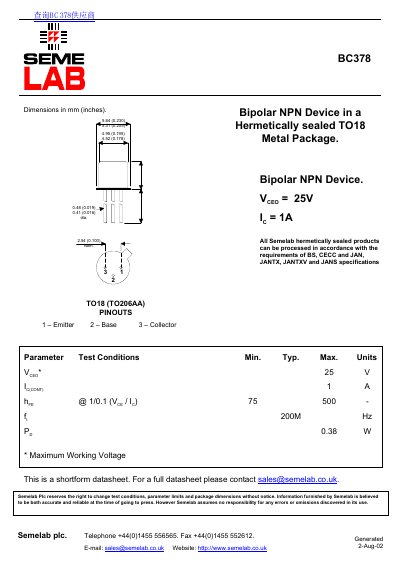

This document is a shortform datasheet for the Semelab BC378, a Bipolar NPN device housed in a hermetically sealed TO18 (TO206AA) metal package. The pinout is defined as Emitter (Pin 1), Base (Pin 2), and Collector (Pin 3).
Key electrical specifications include a maximum working voltage (Vceo) of 25V and a maximum collector current (Ic) of 1A. The device is suitable for processing in accordance with BS, CECC, JAN, JANTX, JANTXV, and JANS specifications.
| Package Type | TO18 (TO206AA) |
|---|---|
| Device Type | Bipolar NPN Device |
| Transition Frequency | 200 MHz |
The maximum working voltage is 25 V.
