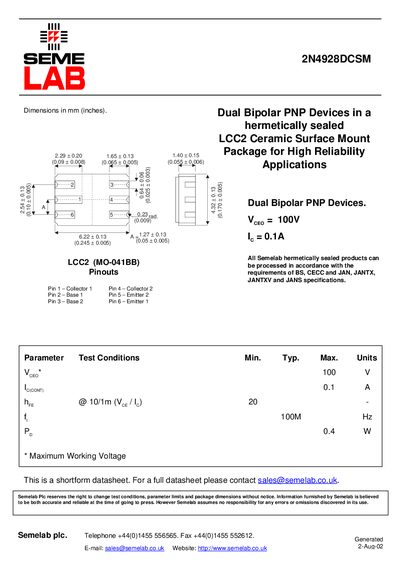

The 2N4928DCSM is a dual bipolar PNP device with a maximum working voltage of 100V and a maximum current of 0.1A. The device is packaged in a hermetically sealed LCC2 ceramic surface mount package and meets the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications.
The 2N4928DCSM is a dual bipolar PNP transistor offered in a hermetically sealed LCC2 (MO‑041 BB) ceramic surface‑mount package for high‑reliability applications. The package dimensions are listed in millimetres and meet BS, CECC, JAN, JANTX, JANTXV and JANS specifications.
Electrical characteristics include a maximum working voltage of 100 V, a test current of 0.1 A, a power dissipation of 0.4 W and a frequency rating of 100 MHz. The six‑pin configuration provides two collectors, two bases and two emitters, with pin assignments detailed in the datasheet.
| Package type | LCC2 (MO-041 BB) hermetically sealed ceramic surface‑mount |
|---|---|
| Maximum working voltage | 100 V |
| Test current | 0.1 A |
| Frequency rating | 100 MHz |
The device is rated for a maximum working voltage of 100 V.
The specified test current is 0.1 A.
It uses an LCC2 (MO‑041 BB) hermetically sealed ceramic surface‑mount package.
Pin 1 – Collector 1, Pin 2 – Base 1, Pin 3 – Base 2, Pin 4 – Collector 2, Pin 5 – Emitter 2, Pin 6 – Emitter 1.
