2N3445 is a bipolar NPN device produced by Semelab. It has a maximum working voltage of 60V and a maximum current of 7.5A. The device complies with BS, CECC and JAN, JANTX, JANTXV and JANS specifications.

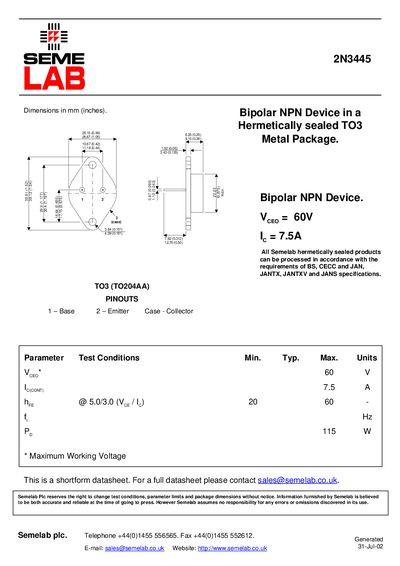

The 2N3445 is a bipolar NPN transistor packaged in a hermetically sealed TO‑3 (TO204AA) metal case. Pin 1 is the base, while pin 2 serves as the emitter and case‑collector connection.\n\nKey electrical parameters include a maximum working voltage of 60 V, a collector current rating of 7.5 A, and a power dissipation of 115 W. The device complies with BS, CECC, JAN, JANTX, JANTXV and JANS specifications.
| Maximum Working Voltage | 60 V |
|---|---|
| Maximum Collector Current | 7.5 A |
| Package | TO3 (TO204AA) |
| Pin 2 Function | Emitter / Case‑Collector |
The device is rated for a maximum working voltage of 60 V.
It can handle up to 7.5 A of collector current.
The transistor is housed in a hermetically sealed TO3 (TO204AA) metal package.
