2N7091 is a P-channel enhancement mode transistor in TO-257AB hermetic package. It has simple drive requirements and is suitable for high reliability applications.

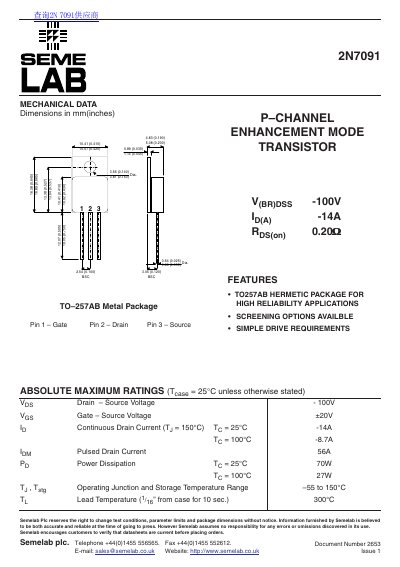

This document provides the datasheet for the Semelab 2N7091, a P-Channel Enhancement Mode MOSFET available in a TO-257AB Hermetic package. The device is designed for high reliability applications and features simple drive requirements with screening options available.
The datasheet lists absolute maximum ratings, including a Drain-Source Voltage of -100V and a Continuous Drain Current of -14A. It also details electrical characteristics such as gate threshold voltage, on-state resistance, and dynamic parameters like input capacitance and turn-on delay time.
| Channel Type | P-Channel |
|---|---|
| Mode | Enhancement Mode |
