Key facts
- Brand
- Kingbright
- Model
- APT1608SURCK
- Industry
- Industrial
- Documents
- 6
- Languages
- EN
- Last added
- 2012-07-12
Start here

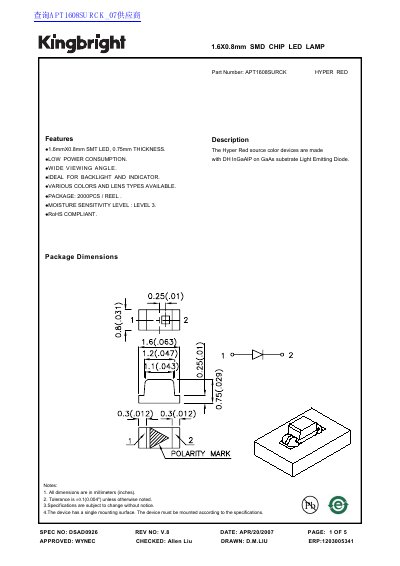

kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(5)
The document describes the WYNEC APT1608SURCK, a Hyper Red source color device made with DH InGaAlP on a GaAs substrate. It is a 1.6mm x 0.8mm SMD chip LED lamp designed for backlight and indicator applications, featuring low power consumption and a wide viewing angle.
Read onlineKingbright APT1608SURCK specifications
| Package Dimensions | 1.6X0.8mm SMD CHIP LED LAMP |
|---|---|
| Peak Wavelength | 650 nm |
| Dominant Wavelength | 635 nm |
| Spectral Line Half-width | 28 nm |
| Forward Voltage | 1.95 to 2.5 V |
| Reverse Current | 10 uA |
| Power dissipation | 75 mW |
| DC Forward Current | 30 mA |
| Reverse Voltage | 5 V |
| Operating Temperature | -40°C To +85°C |
| Package Quantity | 2000PCS / REEL |
| Moisture Sensitivity Level | LEVEL 3 |
Source: kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(5)
All Kingbright APT1608SURCK documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(5) 5 p
- kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(4) 4 p
- kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(3) 7 p
- kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(2) 7 p
- kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(1) 5 p
- kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK datasheet(1) 5 p
Questions answered in these manuals
What is the package type of the APT1608SURCK?
It is a 1.6mm x 0.8mm SMD chip LED lamp.
From: kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(5)
Is the APT1608SURCK RoHS compliant?
Yes, the device is RoHS compliant.
From: kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(5)
What is the viewing angle of the APT1608SEC?
The device has a wide viewing angle with a typical value of 120°.
From: kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(4)
Is the APT1608SEC RoHS compliant?
Yes, the datasheet explicitly states that the device is RoHS Compliant.
From: kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(4)
What is the package quantity per reel?
The package contains 2000 pieces per reel.
From: kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(3)
Is the device RoHS compliant?
Yes, the device is RoHS compliant.
From: kingbright 1.6X0.8mm SMD CHIP LED LAMP APT1608SURCK handbook(3)
