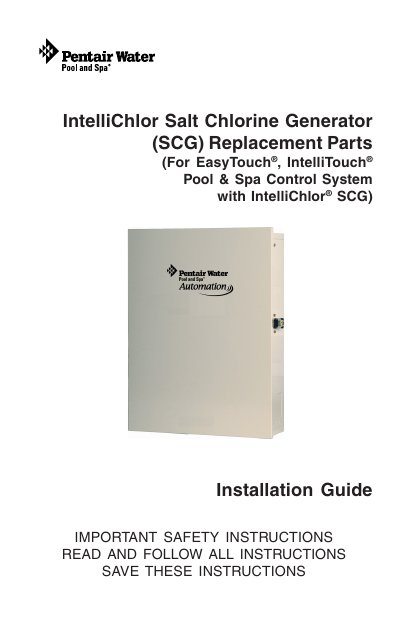

Pentair IntelliChlor SCG Replacement Parts Installation Guide

This document is the installation guide for EasyTouch®/IntelliTouch® SCG Power Supply Replacement Parts, which provides steps and required tools for installing IntelliChlor SCG power supply replacement parts.

Brand: Intel
Category: Other
Document type: Installation Guide
Language: English
Pages: 12
File format: PDF
File size: 2.2 MB
Published: 12 July, 2012
Updated: 28 September, 2023
MD5 checksum: 0F1D90614942941F7BE11E0994CA57EE
PDF: Pentair IntelliChlor SCG Replacement Parts Installation Guide PDF

About this manual

This document provides installation instructions for replacing specific replacement parts in the Pentair IntelliChlor Salt Chlorine Generator (SCG). It covers the removal and installation of the SCG power cable, circuit board, circuit breaker assembly, and transformer assembly. The guide is intended for use with EasyTouch and IntelliTouch pool and spa control systems.

What's inside

IMPORTANT SAFETY INSTRUCTIONS
Introduction
Summary Installation Steps
Load Center Parts Removal
Required Tools
SCG Power Cable Removal and Installation
SCG Circuit Board Removal and Installation
Circuit Breaker Assembly Removal and Installation
SCG Transformer Assembly Removal and Installation
SCG Transformer High Voltage Wiring

Specifications

Torque limit for circuit board screws	10 Ib-in max

Frequently asked questions

Who must install the IntelliChlor SCG replacement parts?

The parts must be installed by a licensed or certified electrician or a qualified pool professional.

What safety code must be followed during installation?

Installation must comply with the National Electrical Code (NEC), NFPA 70, or the Canadian Electrical Code (CEC), CSA C22.1.

What tools are required for the installation?

Required tools include a medium size flat blade screwdriver or 1/4 and 5/16 sockets, and a 0-30 Ib-in torque wrench.
