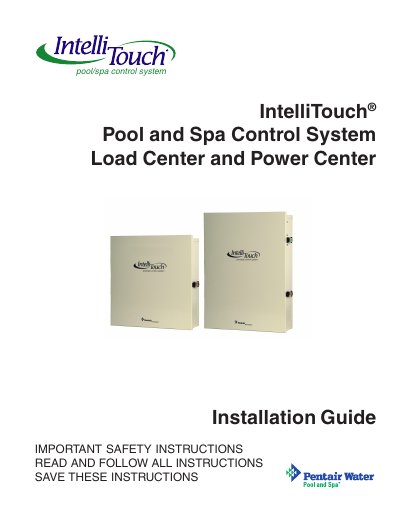

This manual introduces the installation of IntelliTouch® Load Center and Power Center for the IntelliTouch® pool and spa control system.
The document serves as an installation guide for the Pentair IntelliTouch Pool and Spa Control System's Load Center and Power Center. It outlines critical safety warnings regarding electrical shock and water temperature, emphasizing that all work must be performed by a licensed electrician in compliance with national and local codes.
The guide details the contents of the kit, including the enclosure and wiring diagram labels for specific models (i5x, i10x, i9+3S, i10+3D). It provides step-by-step instructions for installing conduit, making high voltage connections, and affixing system labeling. Additionally, it describes optional expansion enclosures that support additional actuators and valve modules.
| Maximum supply conductor current (125 VAC) | 125 Amps |
|---|---|
| Maximum supply conductor current (240 VAC) | 63 Amps |
| Grounding wire minimum size | 12 AWG or 3.3 mm |
All work must be performed by a licensed electrician or qualified pool service persons.
Water temperature in excess of 100 degrees Fahrenheit may be hazardous to your health.
No, the product should not be used for this purpose as swimmers may become entrapped.
