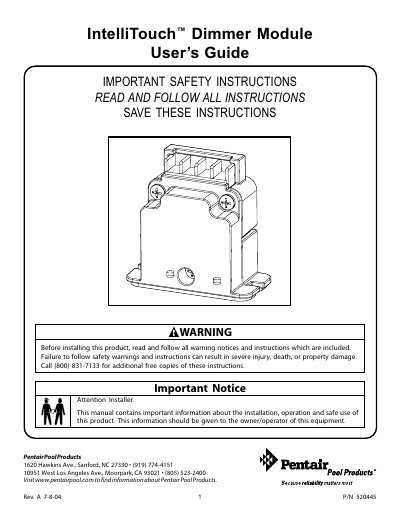

This is a user's guide for Pentair IntelliTouch™ Dimmer Module.
The IntelliTouch Dimmer Module is a UL 1563 listed accessory designed for use with the IntelliTouch Pool/Spa control system. It provides user-controllable light dimming levels specifically for underwater pool or spa lighting, supporting tungsten filament lights only. The module is rated for a maximum of 1000W at 120VAC and a minimum of 100W. The system can support a maximum load of 4000W when divided among any number of modules. A Ground Fault Circuit Interrupter (GFCI) is required for all underwater lighting applications.
| Voltage Rating | 120 VAC |
|---|---|
| Power Rating | 1000W maximum/100W minimum |
| Light Type | Tungsten filament lights only |
| System Maximum Load | 4000 W |
| Maximum Supply Conductor Ampacity | 125 Amps at 125 VAC or 63 Amps at 240 VAC |
| Wire Gauge | 12 AWG maximum |
The module is compatible with tungsten filament lights only.
Yes, a GFCI is required for all underwater lighting, and the control does not provide integral GFCI protection.
All work must be performed by a licensed electrician.
