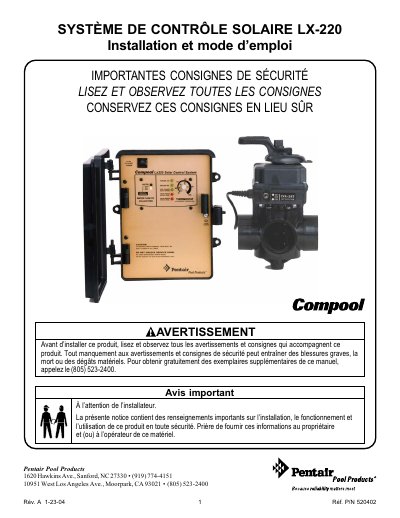

This is a manual for installing and using Compool Lx220 solar control system. The main contents include safety precautions, system composition, installation steps and precautions.
The Compool LX-220 is a differential temperature control device designed specifically for solar-heated swimming pools. When solar energy is available, the system automatically activates a three-port motorized valve and/or a solar booster pump to circulate water through the solar panels. The manual provides detailed instructions for installation, including plumbing requirements, high-voltage wiring, and component connections. This manual is written in French.
| Pipe Diameter | 2 inches recommended |
|---|---|
| Drain Valve Size | 4 inches |
| Water Sensor Hole Size | 5/16 inch |
The system can disable the pump for a period of 4 minutes each time the solar system engages.
The solar control system can be connected to either 115 V or 230 V AC power.
