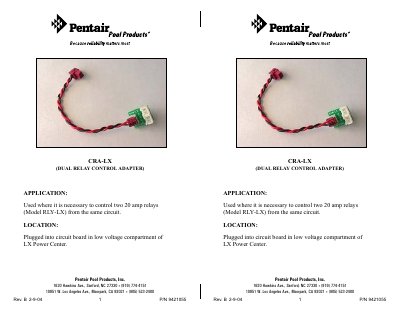

CRA-LX (DUAL RELAY CONTROL ADAPTER) is used where it is necessary to control two 20 amp relays (Model RLY-LX) from the same circuit
The Pentair CRA-LX is a dual relay control adapter designed for use with the LX Power Center. It allows two 20 amp relays (Model RLY-LX) to be controlled from the same circuit within the low voltage compartment of the power center.
To install the unit, disconnect system power and open the left-side hinged faceplate of the LX Power Center. Plug the red/black jumper wire into the appropriate relay socket on the circuit board, mount the two RLY-LX relays in the high voltage compartment, and connect the 2-pin female connectors of the relays to the male connectors on the CRA-LX circuit board.
It is used where it is necessary to control two 20 amp relays from the same circuit.
It is plugged into the circuit board in the low voltage compartment of the LX Power Center.
The adapter controls two power relays of model RLY-LX.
