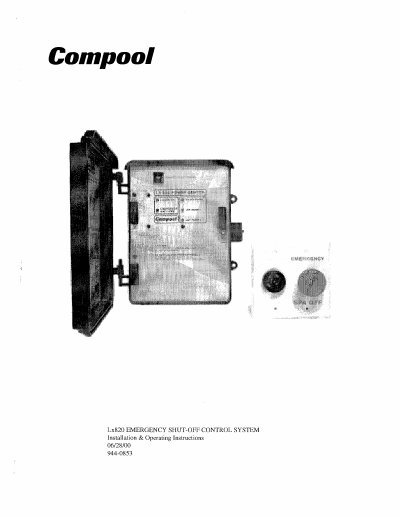

This document is the installation and operating instructions for the Lx820 emergency shut-off control system
The Compool LX-820 Emergency Shut-Off Control System is designed for commercial spas requiring an emergency shut-off switch. It allows the spa to be shut off by pushing a red emergency button, interrupting power to the filter pump, jet pump, and optional auxiliary pump or air blower. Pulling the button back returns the pumps to normal operation and shuts off the alarm. The system includes the LX-820 Power Center and an ESO-2 Emergency Shut-Off Switch with Alarm.
| Warranty Period | one year from the date of original purchase |
|---|---|
| Cable Requirement | 2-conductor 22A WG cable |
| Mounting Distance | greater than 5 feet from the Pool or Spa |
The action interrupts power to the filter pump, jet pump, and optional auxiliary pump or air blower.
Pulling the emergency button back out will return the pumps to normal operation and shut off the alarm.
It indicates an internal circuit breaker has tripped due to an electrical overload situation.
