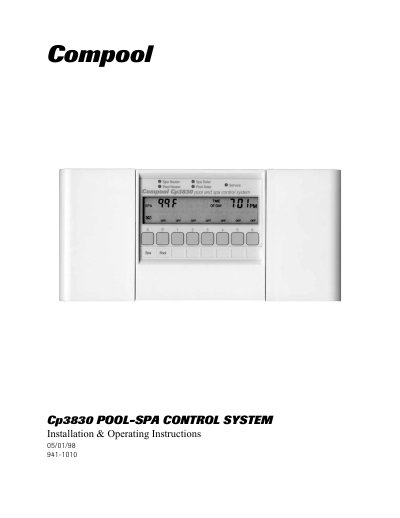

Compool Cp3830 Pool-Spa Control System Installation and Operating Instructions

About this manual

The document serves as an installation and operating guide for the Compool Cp3830 Pool-Spa Control System. It details the package contents, plumbing requirements, high voltage wiring, and low voltage connections necessary to set up the power center and control panel.

The guide covers system start-up procedures, programming options such as time-of-day settings and run times, and operating instructions for various equipment keys including temperature control and freeze protection.

What's inside

• Safety Notice
• Package Contents
• Plumbing Requirements
• High Voltage Wiring
• Low Voltage Wiring
• System Start-up
• Programming
• Operating Instructions
• Problem Solving
• Warranty

Frequently asked questions

What components are included in the CP3830/S system?

The system includes a CP-3830 Control Panel, an LX-3830 Power Center, and an SNS-KIT3 Sensor Kit.

What is the recommended horsepower for a single pump system per jet?

It is recommended to install 1/2 HP per jet if using a single pump system.
