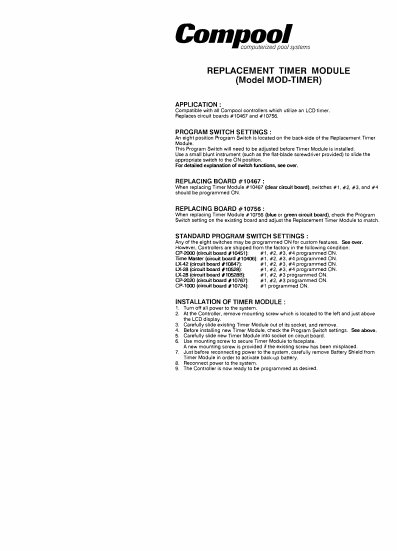

This file describes a replacement timer module for pool systems that is compatible with all Compool controllers that use an LCD timer. It can replace circuit boards #I0467 and #10756.
The document details the application of the Compool MOD-TIMER replacement timer module, specifying compatibility with controllers utilizing LCD timers and listing the specific circuit board numbers it replaces (#10467 and #10756). It includes instructions for adjusting the eight-position program switch on the back of the module before installation to match existing settings or standard configurations.
| Compatible Controllers | All Compool controllers which utilize an LCD timer |
|---|---|
| Replaces Circuit Boards | #10467 and #10756 |
It replaces circuit board #10467 (clear) and #10756 (blue or green).
You must adjust the eight-position Program Switch on the back of the module to match the existing board settings or standard factory conditions.
