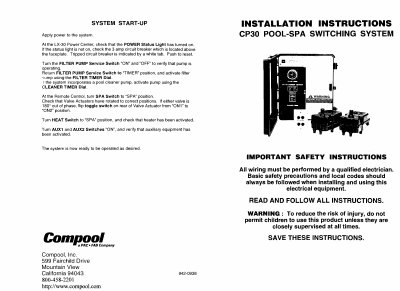

Compool CP30 Pool-Spa Switching System Owner's Manual

This document provides installation instructions for the CP30 pool-spa switching system, including the system's composition, installation steps, and precautions.

Brand: Compool
Category: Other
Document type: User Manual
Language: English
Pages: 6
File format: PDF
File size: 212 KB
Published: 12 July, 2012
Updated: 01 October, 2023
Model: CP30
MD5 checksum: ABA80493AC29931D2E4651BAE73525D8
PDF: Compool CP30 Pool-Spa Switching System Owner's Manual PDF

About this manual

This manual provides instructions for the startup and operation of the Compool CP30 Pool-Spa Switching System. It details how to verify the power status, operate the filter pump and cleaner timers, and configure the spa and heater switches. The document also includes safety warnings regarding electrical installation and supervision of children.

What's inside

SYSTEM START-UP
INSTALLATION INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
SYSTEM OPTIONS
EQUIPMENT LOCATION
POWER CENTER
LOW-VOLTAGE CABLES
HIGH-VOLTAGE WIRING
VALVE ACTUATORS
REMOTE CONTROL

Specifications

System Power Voltage	115 or 230V AC
System Power Draw	less than 1 amp
Electric Heater Rating	up to 3K VA
Remote Control Cable	4-pair 22AWG
Valve Actuator Cable Length	15 feet

Frequently asked questions

What is the minimum distance for electrical equipment from the water's edge?

All electrical equipment must be located five feet or more from the water's edge.

What is the recommended voltage for the system?

115V AC is preferable, though 230V AC can also be used.
