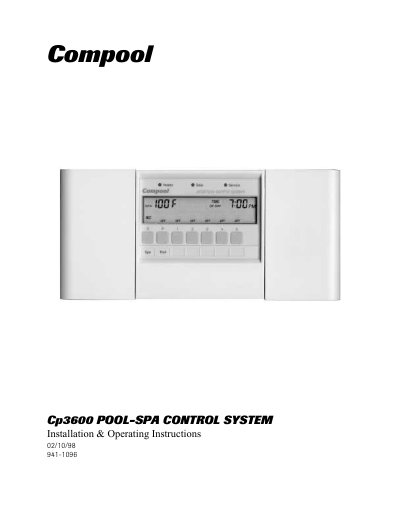

Compool Cp3600 Pool-Spa Control System Installation and Operating Instructions

Compool Cp3600 POOL-SPA CONTROL SYSTEM Installation & Operating Instructions

Brand: Compool
Document type: User Manual
Language: English
Pages: 44
File format: PDF
File size: 653 KB
Published: 06 August, 2012
Updated: 30 September, 2023
Model: CP3600
MD5 checksum: 8F6BA96E3E6AC7F29C3141B70C84ED36
PDF: Compool Cp3600 Pool-Spa Control System Installation and Operating Instructions PDF

About this manual

The document serves as an installation and operating guide for the Compool Cp3600 Pool-Spa Control System. It details the package contents, plumbing requirements, and high and low voltage wiring procedures necessary to connect the power center, valve actuators, sensors, and optional modules like heat pumps or solar heating.

What's inside

Safety Notice
Package Contents
Plumbing Requirements
High Voltage Wiring
Low Voltage Wiring
System Options
Operating Instructions
Programming
Problem Solving
Warranty

Specifications

Control Panel Model	CP-3600
Power Center Model	LX-3600 or LX-3600L
Valve Actuator Quantity	2 qty.
3-Port Valve Quantity	2 qty.

Frequently asked questions

What is the maximum safe water temperature?

Water in excess of 100 degrees Fahrenheit may be hazardous to your health.

How should the spa suction line be plumbed?

Connect the spa suction to one port and the pool suction to the other port on the valve.

What is required for the equipment ground connection?

It must be connected with a continuous copper wire equivalent in size to the circuit conductors supplying this equipment.

Download PDF (653 KB)
