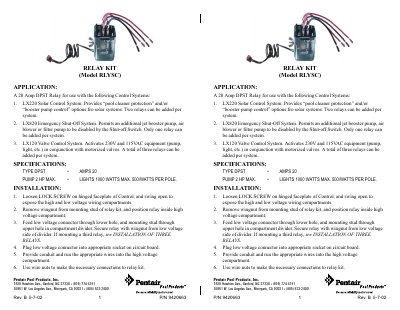

Pentair RLYSC Relay Kit Installation Guide

About this manual

The Pentair RLYSC is a 20 Amp DPST Relay Kit designed to expand functionality for specific pool control systems. It provides options such as pool cleaner protection, booster pump control, emergency shut-off capabilities, and valve activation for equipment like pumps and lights.

Installation involves mounting the relay inside the high voltage compartment of compatible control units (LX220, LX820, or LX120). The guide details steps for securing the unit, connecting low-voltage connectors to the circuit board, and wiring high-voltage connections to time clocks or circuit breakers. It also includes specific instructions for mounting a third relay if required.

What's inside

• APPLICATION
• SPECIFICATIONS
• INSTALLATION
• INSTALLATION OF THREE RELAYS
• HIGH VOLTAGE WIRING
• CONNECTING TO TIME CLOCK
• CONNECTING TO CIRCUIT BREAKER

Specifications

Frequently asked questions

What is the maximum wattage for lights connected to this relay?

The maximum load for lights is 1000 Watts.

What is the maximum pump horsepower this relay can handle?

The relay is rated for a maximum of 2 HP for pump applications.

What is the maximum wattage allowed for lights connected to this relay?

The relay supports a maximum of 1000 watts for lighting circuits.

How many relays can be added to an LX220 Solar Control System?

Two relays can be added per LX220 Solar Control System.
