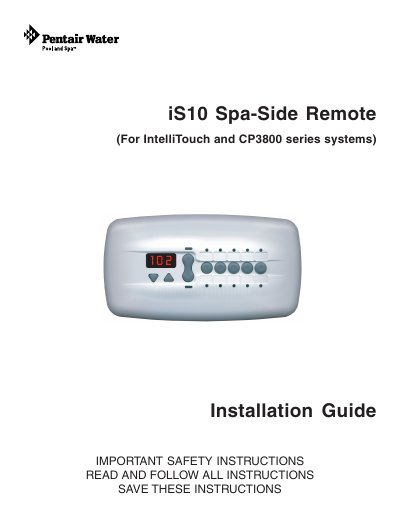

This document describes the installation guide for IS10 Spa-Side Remote (For IntelliTouch and CP3800 series systems).
This guide provides installation instructions for the Pentair iS10 spa-side remote controller, which allows control of up to ten system functions and temperature adjustment from the spa location. The device is compatible with IntelliTouch models (i5, i5S, i7+8, i9+3, i9+3S, i10+3D) and Compool CP3 series systems. It is a double-insulated, splash-proof, and weatherproof device that must be installed above the highest sustained water level and is not submersible.
| Compatible Systems | IntelliTouch and CP3800 series systems |
|---|---|
| Control Functions | Up to ten functions |
| Temperature Control | Adjustable from remote |
| Maximum Remotes (IntelliTouch i7+8, i9+3, i9+3S, i10+3D) | Four |
| Maximum Remotes (i5, i5S, CP3) | One (or two with mirrored functionality) |
| Mounting Type | Splash-proof and weatherproof |
| Mounting Location Requirement | Above highest sustained water level |
| Faceplate Dimensions (Flat) | 6-1/2" x 3-1/2" |
| Faceplate Dimensions (Skirted) | 6" x 2-5/8" x 1-1/4" high |
| Mud-box Dimensions | 5-1/2" x 2-1/2" x 2-7/8" deep |
Yes, but only one iS10 remote can be supported, or two can be used which will mirror each other in functionality.
No, the iS10 is splash-proof and weatherproof but is not submersible.
It must be installed above the highest sustained water level.
Up to four iS10 remotes may be installed.
