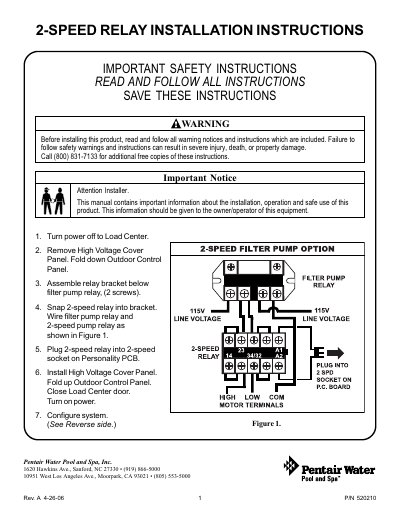

This document is an installation guide from Pentair Water Pool and Spa, Inc. It provides instructions on how to install a 2-speed relay and configure the system.
This document provides installation instructions for the Pentair 520210 2-Speed Relay. It details the physical assembly steps, including mounting the relay bracket below the filter pump relay and snapping the unit into place. The guide also covers connecting the high and low motor terminals to the appropriate sockets on the Personality PCB.
This relay is designed to switch a 2-speed filter pump to high speed when specific equipment circuits are active.
You must use two screws to assemble the relay bracket below the filter pump relay.
The relay requires a connection to 115V line voltage.
