Pentair 710042 Aboveground Systems Mounting Base Installation Instructions

About this manual

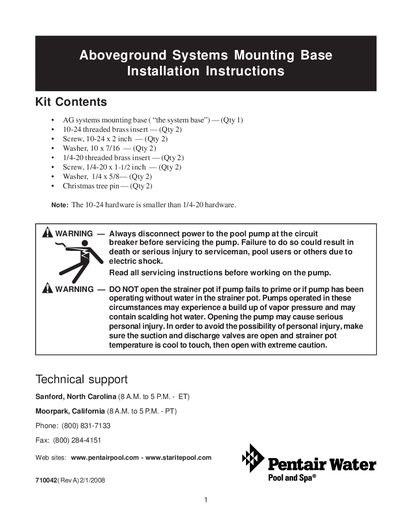

This document provides installation instructions for the Pentair 710042 Aboveground Systems Mounting Base kit. The kit includes a mounting base, threaded brass inserts, screws, washers, and Christmas tree pins designed to secure select Pentair aboveground pool pump and filter systems on a level equipment pad. Important safety warnings are included regarding electrical shock and the risk of scalding hot water when servicing the pump.

What's inside

• Kit Contents
• Safety Warnings
• Seat the Pump
• Seat the Filter Tank Foot
• Secure the Filter Tank Foot
• Secure the Pump
• Removal

Specifications

Frequently asked questions

What hardware is included in the mounting base kit?

The kit includes the mounting base, 10-24 and 1/4-20 threaded brass inserts, screws, washers, and Christmas tree pins.

Which Pentair filter models are supported by this mounting base?

The system base supports the PLM, PLD, PXC, PRC, PRD, Clean & Clear, and Warrior filter models.

What hardware is required to secure a PXC or PRC filter tank?

You must use a #10-24 x 2" long screw with a 10-24 brass insert and a 10 x 7/16 washer.

What hardware is required to secure a PLM or PLD filter tank?

You must use a 1/4-20 x 1-1/2" long screw with a 1/4-20 brass insert and a 1/4 x 5/8 washer.
