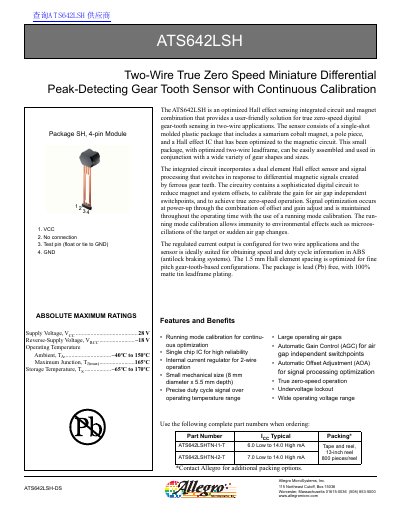

The ATS642LSH is an optimized Hall effect sensing integrated circuit and magnet combination that provides a user-friendly solution for true zero-speed digital gear-tooth sensing in two-wire applications. The sensor consists of a single-shot molded plastic package that includes a samarium cobalt magnet, a pole piece, and a Hall effect IC that has been optimized to the magnetic circuit. This small package, with optimized two-wire leadframe, can be easily assembled and used in conjunction with a wide variety of gear shapes and sizes. The integrated circuit incorporates a dual element Hall effect sensor and signal processing engine, which provides high-precision, reliable gear tooth sensing.
The ATS642LSH is an optimized Hall effect sensing integrated circuit and magnet combination designed for true zero-speed digital gear-tooth sensing in two-wire applications. It features running mode calibration, automatic gain control (AGC), and automatic offset adjustment (AOA) to ensure immunity to environmental effects such as micro-oscillations or sudden air gap changes.
The sensor is packaged in a small 8 mm diameter x 5.5 mm depth lead-free module with 100% matte tin plating. It incorporates a dual element Hall effect sensor and signal processing circuitry optimized for fine pitch gear-tooth-based configurations, making it ideal for obtaining speed and duty cycle information in anti-lock braking systems (ABS).
| Operating Temperature Range | -65°C to +170°C |
|---|---|
| Package Dimensions | 8 mm diameter x 5.5 mm depth |
| Operating Air Gap Range | 0.5 - 2.75 mm |
| Maximum Operational Air Gap | 3 mm |
The sensor is ideally suited for obtaining speed and duty cycle information in ABS (antilock braking systems).
Yes, the package is lead (Pb) free with 100% matte tin leadframe plating.
