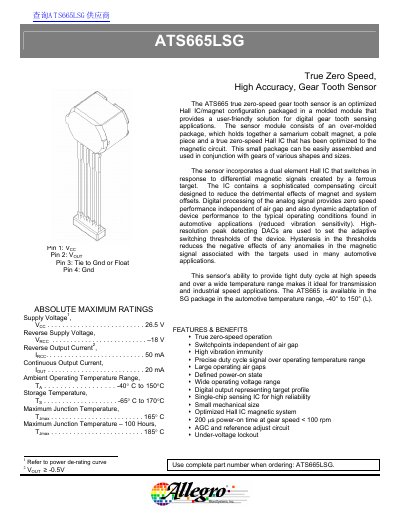

ATS665LSG True Zero Speed, High Accuracy, Gear Tooth Sensor
The Allegro ATS665LSG is a true zero-speed gear tooth sensor designed for digital gear tooth sensing applications. It utilizes an optimized Hall IC/magnet configuration packaged in a molded module to provide a user-friendly solution. The sensor incorporates a dual element Hall IC that switches in response to differential magnetic signals created by a ferrous target, offering high accuracy and zero-speed performance independent of air gap.
| Supply Voltage | 3.3 - 24 V |
|---|---|
| Continuous Output Current | 20 mA |
| Ambient Operating Temperature Range | -40° C to 150°C |
| Power-On Time | 200 us |
| Bandwidth | 20 kHz |
| Operational Air Gap | 0.5 - 2.5 mm |
The device is guaranteed to power up in the OFF state (logic high output).
Yes, when the supply voltage falls below the minimum operating voltage, the device turns OFF and stays OFF.
The reference target gear is made of low carbon steel.
