The product is a digital gear tooth sensor with self-calibration function and 9-bit signal capture. It can provide zero-speed performance.

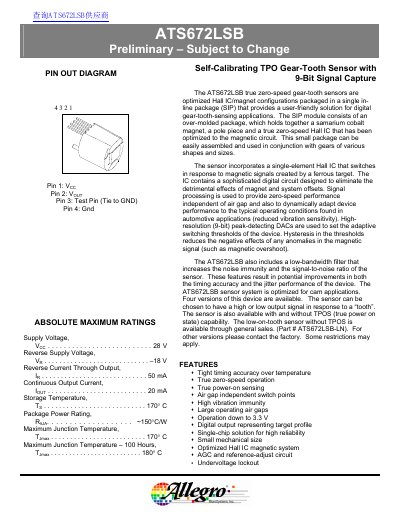

The ATS672LSB is a self-calibrating true zero-speed gear-tooth sensor with 9-bit signal capture, optimized for cam applications. It features a single-chip solution with an over-molded package containing a samarium cobalt magnet, a pole piece, and a true zero-speed Hall IC. The device is designed to provide tight timing accuracy over temperature and true zero-speed operation independent of air gap.
| Supply Voltage | 3.3 to 26.5 V |
|---|---|
| Reverse Supply Voltage | -18 V |
| Continuous Output Current | 20 mA |
| Storage Temperature | -65 to 170°C |
| Maximum Junction Temperature | 170°C |
| Bandwidth | 40 kHz |
| Operate Point | +30 % |
| Release Point | +40 % |
The operational air gap range for output switching is 0.5 mm to 2.25 mm.
The reference target requires a diameter of 12.0 mm, thickness of 6.0 mm, and tooth/valley width of 23.6 mm.
Yes, the device includes TPOS (true power on state) capability in specific versions like the ATS672LSB-LT and ATS672LSB-HT.
