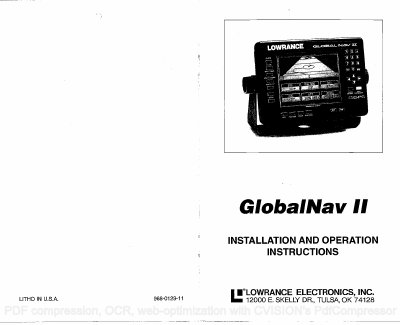

This manual introduces the installation and operation of the GlobalNav II GPS receiver.
The document serves as an installation and operation guide for the Lowrance GlobalNav II GPS receiver. It details various mounting options including bracket mount and in-dash installation, along with specific hardware requirements and cutout dimensions.
The manual covers power connections requiring a 12-volt system and a mandatory 3-amp fuse, explains how to configure GPS settings such as PCF offsets, and describes the initialization process. It also provides an overview of the device's features, screen groups, waypoint navigation, route management, and alarm functions.
| Channels | Five Parallel |
|---|---|
| Update rate | One second |
| Position Accuracy | .25 meters CEP |
| Velocity Accuracy | .0.25 meters/sec RMS |
| Fuse Rating | 3-amp fuse |
Yes, it uses a 3-amp fuse and failure to use one will void the warranty.
The device is intended to be used only as an aid to navigation and never as the sole method for obtaining position information.
The unit achieves a position accuracy of 25 meters CEP and a velocity accuracy of 0.25 meters/sec RMS.
The GlobalNav II uses a 3-amp fuse, and failure to use one will void the warranty.
