This document describes how to install the StructureScan transducer, including the required hardware and tools, and considerations for installation in different locations.

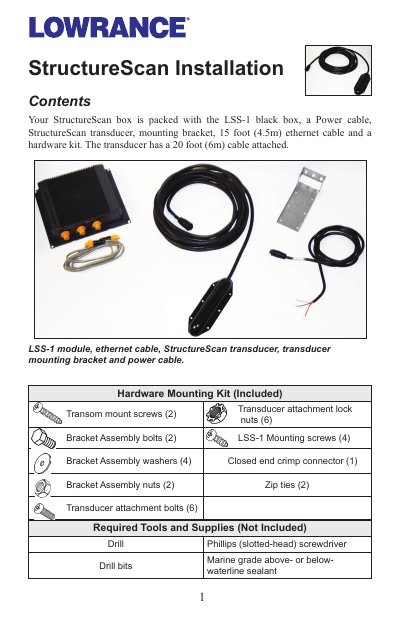

This guide details the installation of the Lowrance LSS-1 StructureScan transducer. It includes a list of included hardware and required tools, and explains how to assemble the transducer and bracket. The document covers various mounting options including transom, jackplate, step, and direct hull mounts, providing specific steps and supplies for each.
| Included cable length | 15 foot (4.5m) ethernet cable |
|---|---|
| Transducer cable length | 20 foot (6m) |
| Power requirement | 12 Volt battery |
| Ethernet ports | three ethernet ports |
Required tools include a drill, Phillips screwdriver, drill bits, and marine grade sealant.
The LSS-1 can be mounted under the dash, in the rod locker, or in the battery compartment.
The blue wire should be cut flush and covered with a wire nut or electrical tape.
