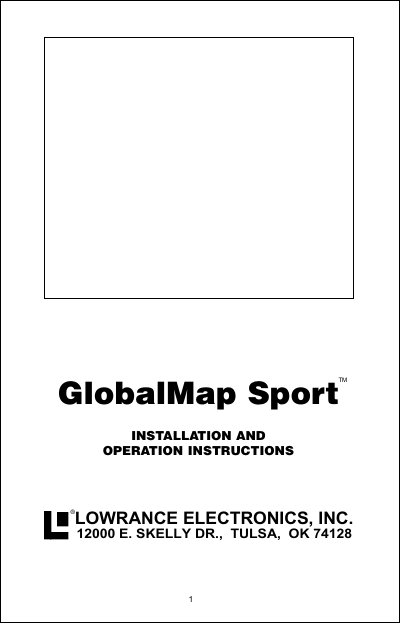

Lowrance GlobalMap Sport Installation and Operation Instructions

This manual introduces the use of GlobalMap Sport, including installation and operation

Brand: Lowrance
Category: GPS
Document type: User Manual
Language: English
Pages: 61
File format: PDF
File size: 765 KB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: 92C20D1AC847C2F30DDE68A839D4427C
PDF: Lowrance GlobalMap Sport Installation and Operation Instructions PDF

About this manual

This manual provides installation and operation instructions for the Lowrance GlobalMap Sport, a handheld GPS receiver with mapping capabilities. It details battery installation, external power options, and antenna setup. The device features a 5-channel receiver and supports inland and C-Map mapping cartridges.

What's inside

Introduction
Installation
Battery Installation
External Power
Antenna
Operation
Menus
Finding Your Position
Waypoint Navigation
GPS Commands

Specifications

Power Source	Six AA batteries
External Power Range	6 to 35 volts DC
Receiver Channels	5 channel
Storage Temperature	-20 to +75 degrees Celsius

Frequently asked questions

What type of batteries are required?

The unit requires six AA batteries, with DuraCell alkaline batteries recommended.

Can the unit be powered externally?

Yes, it can operate on 6 to 35 volts DC from an external power source.

How should the antenna be positioned?

The antenna should be parallel with the ground to ensure a flat surface for receiving signals.
