Motorola Thyristor Device Data is a datasheet about Motorola Thyristor devices. These devices are primarily designed for full wave AC control applications, such as motor controls, heating controls, or dimmers, where full-wave, silicon gate-controlled devices are needed. They have high commutating di/dt and high immunity to dv/dt at 125°C. The devices minimize the need for snubber networks for protection. They have a blocking voltage of up to 800 volts, an on-state current rating of 16 amperes RMS, and a high surge current capability of 150 amperes. The devices come in an industry-standard TO-220AB package for ease of design, and they have glass passivated junctions for reliability and uniformity.

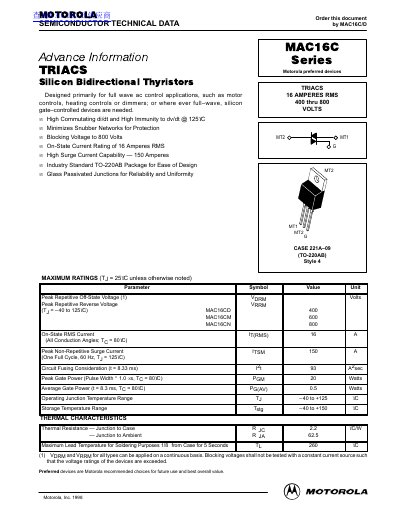

This document provides technical specifications for the Motorola MAC16C Series of Silicon Bidirectional Thyristors (TRIACs). Designed primarily for full-wave AC control applications such as motor controls, heating controls, and dimmers, these devices feature high commutating di/dt and dv/dt immunity at 125°C. The series includes three voltage variants: MAC16CD (400V), MAC16CM (600V), and MAC16CN (800V), all with an on-state current rating of 16 Amperes RMS.
| On-State RMS Current | 16 A |
|---|---|
| Peak Gate Power | 20 Watts |
| Operating Junction Temperature Range | -40 to +125 °C |
| Thermal Resistance — Junction to Case | 2.2 °C/W |
| Peak Repetitive Off-State Voltage (MAC16CD) | 400 Volts |
| Peak Repetitive Off-State Voltage (MAC16CM) | 600 Volts |
| Peak Repetitive Off-State Voltage (MAC16CN) | 800 Volts |
| Package Style | TO-220AB |
The series includes MAC16CD for 400V, MAC16CM for 600V, and MAC16CN for 800V.
The on-state current rating is 16 Amperes RMS for all conduction angles at 80°C.
The devices use the industry standard TO-220AB package.
