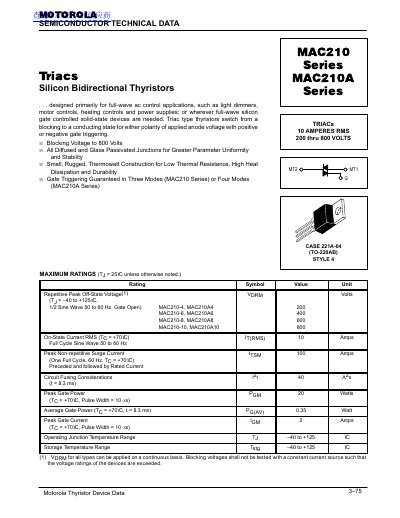

This document is the product data sheet of Motorola's MAC210 series bidirectional thyristor devices. The devices in this series are primarily used for full-wave AC control applications, such as light dimmers, motor controls, heating controls and power supplies; or wherever full-wave silicon gate controlled solid-state devices are needed.
This document provides detailed specifications and characteristics for Motorola Silicon Bidirectional Thyristors, also known as TRIACs. These devices are designed primarily for full-wave AC control applications, such as light dimmers, motor controls, heating controls, and power supplies. The thyristors switch from a blocking to a conducting state for either polarity of applied anode voltage with positive or negative gate triggering.
| Rep. Peak Off-State Voltage | 200 to 800 Volts |
|---|---|
| On-State Current RMS | 10 Amps |
| Peak Non-repetitive Surge Current | 100 Amps |
| Operating Junction Temperature Range | -40 to +125 °C |
| Thermal Resistance, Junction to Case | 2.2 °C/W |
| Peak On-State Voltage | 1.2 to 1.65 Volts |
| Gate Trigger Current (Continuous dc) | 12 to 75 mA |
They are designed primarily for full-wave AC control applications, such as light dimmers, motor controls, heating controls, and power supplies.
The maximum operating junction temperature is +125 °C.
The peak non-repetitive surge current is 100 Amps.
