This document is the Motorola Thyristor Device Data, which introduces the features and characteristics of the company's silicon bidirectional thyristor products

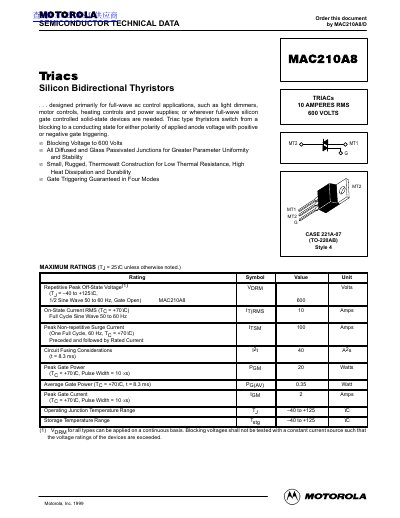

This document provides technical data for the Motorola MAC210A8, a silicon bidirectional thyristor (Triac) designed primarily for full-wave AC control applications such as light dimmers, motor controls, and heating controls. The device features a blocking voltage of 600 volts and an RMS on-state current of 10 amperes.
| Blocking Voltage | 600 Volts |
|---|---|
| On-State Current RMS | 10 Amps |
| Peak Non-repetitive Surge Current | 100 Amps |
| Operating Junction Temperature Range | -40 to +125 °C |
| Thermal Resistance Junction to Case | 2.0 °C/W |
| Peak Gate Power | 20 Watts |
| Package Style | TO-220AB |
The device is designed primarily for full-wave AC control applications, such as light dimmers, motor controls, heating controls and power supplies.
The operating junction temperature range is from -40 to +125 °C.
The peak gate current is rated at 2 Amps.
