This document describes the features and characteristics of Motorola Thyristor devices, primarily designed for full-wave AC control applications such as light dimmers, motor controls, heating controls, and power supplies. Triac-type thyristors switch from a blocking to a conducting state for either polarity of applied anode voltage with positive or negative gate triggering.

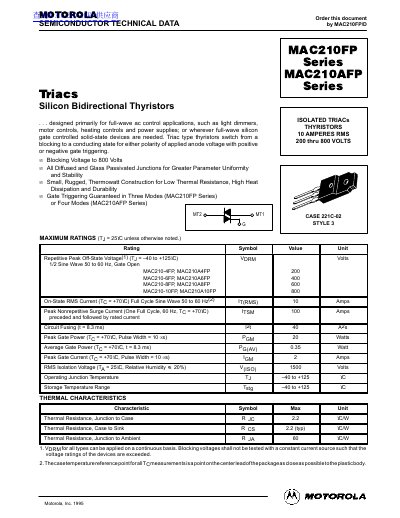

This document provides technical data for the Motorola MAC210FP series of Silicon Bidirectional Thyristors (TRIACs). These devices are designed primarily for full-wave AC control applications, such as light dimmers, motor controls, heating controls, and power supplies. The thyristors switch from a blocking to a conducting state for either polarity of applied anode voltage with positive or negative gate triggering.
| On-State RMS Current | 10 Amps |
|---|---|
| Peak Nonrepetitive Surge Current | 100 Amps |
| Peak Gate Power | 20 Watts |
| Operating Junction Temperature | -40 to +125 °C |
| Thermal Resistance, Junction to Case | 2.2 °C/W |
| Isolation Voltage | 1500 Volts |
The devices are designed primarily for full-wave AC control applications, such as light dimmers, motor controls, heating controls, and power supplies.
The operating junction temperature ranges from –40 to +125 °C.
