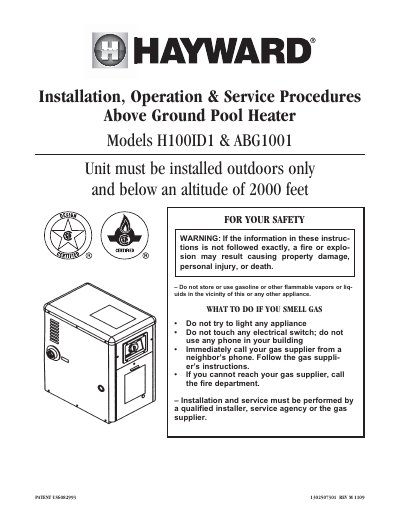

Hayward ABG1001 Above Ground Pool Heater Installation Operation and Service Manual

About this manual

This document serves as the installation, operation, and service manual for the Hayward ABG1001 above ground pool heater, which is also compatible with the H100ID1 model. It emphasizes that the unit must be installed outdoors only and below an altitude of 2000 feet. The text includes critical safety warnings regarding gas usage, electrical grounding, and the requirement for installation by a qualified technician.

What's inside

• Installation, Operation & Service Procedures
• Water Flow Through Heater
• Pool/Spa Water Chemistry
• Skimmer Chlorination
• Chlorinator Installation
• Bypass Valve Usage
• General Information and Important Notices
• Conformance with Codes
• Location of Heater
• Outdoor Installation Clearances

Specifications

Frequently asked questions

What is the minimum water flow rate required for the heater?

The minimum rated flow rate for the heater is 20 GPM.

Can chlorine tablets be placed directly in the skimmer?

No, placing chlorine or bromine tablets directly into the skimmer may result in high chemical concentrations flowing through the heater.

Where must the chlorinator be installed relative to the heater?

Chlorinators must be installed downstream of the heater, and a check valve must be installed between the heater and chlorinator.
