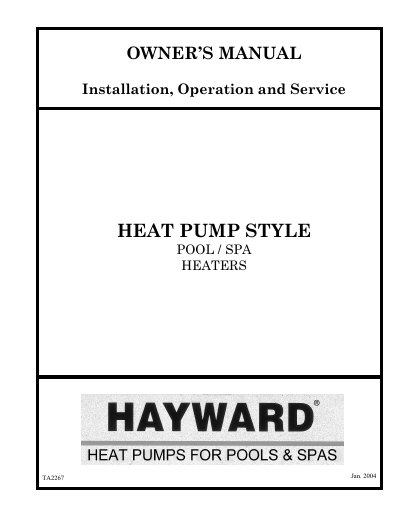

This file is the TA2267 HEAT PUMP STYLE POOL / SPA HEATERS Owner's Manual, which introduces the working principle of heat pump, how to get familiar with your heat pump, installation specifications, usage methods, maintenance and troubleshooting.
The document provides comprehensive instructions for the Hayward TA2267HEAT Heat Pump Pool/Spa Heater. It explains operating principles, including how the unit extracts heat from the environment to warm pool water with a coefficient of performance between 4 and 6. The guide details various thermostat control systems available on different models, ranging from single mechanical thermostats to advanced digital controls with standby modes.
The thermostat has a temperature range from 60 °F – 105 °F.
A heat pump can transform 4 to 6 units of heat energy for every 1 equivalent unit of electrical energy it consumes.
The low-pressure switch will trip, shutting down the unit to prevent damage, and the display will read 'LP'.
