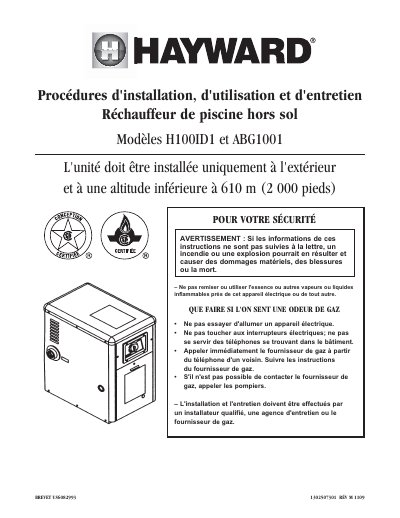

Hayward ABG1001 Above Ground Pool Heater Installation and Maintenance Manual
This document serves as the installation, operation, and maintenance guide for the Hayward ABG1001 above-ground pool heater. It covers critical safety warnings, including procedures for gas leaks and fire prevention, and specifies that installation and maintenance must be performed by a qualified installer or agency. The manual details requirements for electrical connections, gas piping, and water supply systems. This manual is written in French.
Read onlineHayward ABG1001 specifications
| Minimum water flow rate | 80 L/min (20 GPM) |
|---|---|
| Voltage | 120 volts |
| Current demand | 2 ampères |
| Altitude limit | 4 610 m (2 000 feet) |
Source: Hayward ABG1001 Above Ground Pool Heater Installation and Maintenance Manual
All Hayward ABG1001 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What should be done if a gas odor is detected?
Do not turn on electrical appliances or touch electrical switches. Call the gas supplier from a neighbor's phone immediately.
From: Hayward ABG1001 Above Ground Pool Heater Installation and Maintenance Manual
What is the minimum water flow rate required for this heater?
The unit requires a minimum water flow of 80 L/min (20 GPM) during operation.
From: Hayward ABG1001 Above Ground Pool Heater Installation and Maintenance Manual
What is the minimum water flow rate required for the heater?
The minimum rated flow rate for the heater is 20 GPM.
From: Hayward ABG1001 Above Ground Pool Heater Installation Operation and Service Manual
Can chlorine tablets be placed directly in the skimmer?
No, placing chlorine or bromine tablets directly into the skimmer may result in high chemical concentrations flowing through the heater.
From: Hayward ABG1001 Above Ground Pool Heater Installation Operation and Service Manual
