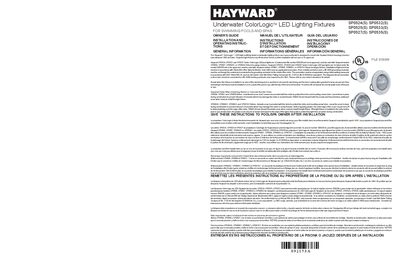

Hayward SP0524/SP0525/SP0527/SP0532/SP0533/SP0535 Series ColorLogic LED Underwater Lighting Fixtures Owner's Guide

About this manual

This document serves as the owner's guide for Hayward ColorLogic™ LED underwater lighting fixtures designed for swimming pools and spas. It specifies that these fixtures are intended to mount into Hayward fixture housings (niches) manufactured in 1993 or later. While compatibility with other niches is possible, such installations will not carry UL approval unless specific models are used.

What's inside

• General Information
• Installation Requirements
• Niche Compatibility and UL Listing
• Concrete/Gunite Pool Installation Notes

Frequently asked questions

What is the minimum depth required for the lens below the normal water level?

The fixture must be installed with the top of the lens not less than 18 inches (46 cm) below the normal water level.

What size grounding conductor is required if non-metallic conduit is used?

A #8 AWG grounding conductor must be run through the conduit and connected to the grounding connector on the inside of the niche.

Which potting compound is specified for encapsulating the connection?

The connection must be encapsulated using 3M Scotch Cast Wet Niche Potting Compound No. 2135 or an equivalent listed compound.
