This document describes the SP1068 and SP1068 DL models of IS1068-99, which feature a smooth, contoured shape for efficient vortex cleaning on straight-aways and corners. They are made of luxurious transparent Dural™ plastic, allowing you to see through the head while vacuuming. The weight of the vacuum can be adjusted by adding or removing internal weights (range 40 to 88 oz.). The vacuum also has a 360° swivel hose connector for easy maneuverability and no hose tangling. The brushes are easily cleanable and long-wearing. The SP1068DL model comes with three 1/3 lb. weights, while the SP1068 model does not come with optional weights.

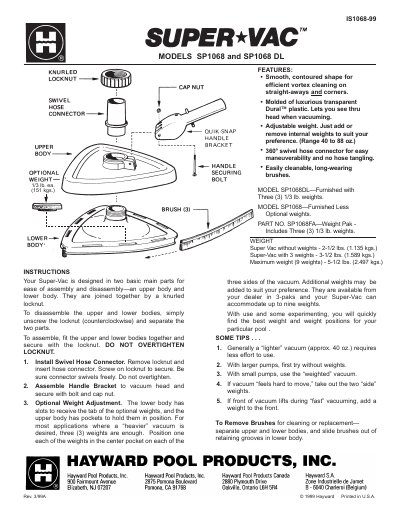

This document provides assembly and disassembly instructions for the Hayward Super-Vac pool cleaner, specifically models SP1068 and SP1068 DL. The device consists of an upper body and a lower body joined by a knurled locknut. It features a swivel hose connector, a handle bracket, and optional adjustable weights to suit different pool conditions and pump sizes.
| Weight Range | 40 to 88 oz. |
|---|---|
| Weight per unit | 1/3 lb. ea. |
| Super-Vac without weights | 2-1/2 lbs. |
| Super-Vac with 3 weights | 3-1/2 lbs. |
| Maximum weight (9 weights) | 5-1/2 lbs. |
Fit the upper and lower bodies together and secure them with the locknut, ensuring not to overtighten.
Separate the upper and lower bodies, then slide the brushes out of the retaining grooves in the lower body.
