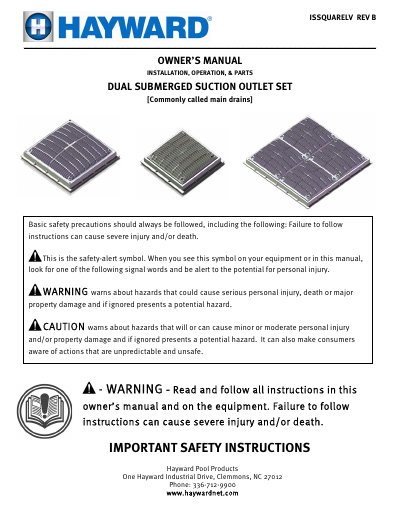

This owner’s manual contains detailed installation, operation and maintenance instructions for the Dual Submerged Suction Outlet Set [Commonly called main drains].
This manual provides instructions for the installation, operation, and maintenance of the Hayward ISSQUARELV REV B Dual Suction Outlet Set. It includes critical safety warnings regarding suction entrapment hazards and emphasizes the use of genuine replacement parts to ensure safe operation.
The document details system specifications for various outlet covers (WG1031BLV, WG1032BLV, WG1033BLV) and provides acceptable pipe size charts based on flow rates. It also offers specific installation instructions for the WG1033LVPAK2 18" x 18" frame and cover dual pack, including parts lists and assembly steps.
The WG1033BLV cover included in this package is rated for a maximum of 520 GPM when wall mounted or floor mounted.
This package includes four 9" x 9" covers and frames.
