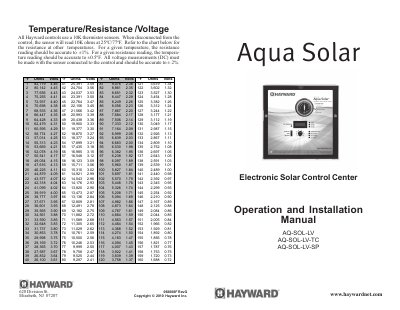

Hayward AQ-SOL-LV Series Electronic Solar Control Operation and Installation Manual

This document provides a table of resistance values for Hayward 10K thermistor sensors. The table includes temperature, resistance, and voltage values.

Brand: Hayward
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 513 KB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: 98813BDCB908C75666FF3B81A5695236
PDF: Hayward AQ-SOL-LV Series Electronic Solar Control Operation and Installation Manual PDF

About this manual

The document is the Operation and Installation Manual for Hayward's Aqua Solar Electronic Solar Control Center models AQ-SOL-LV, AQ-SOL-LV-TC, and AQ-SOL-LV-SP. It details the use of 10K thermistor sensors for temperature monitoring in pool, solar, and auxiliary applications.

What's inside

Specifications
Controls
Temperature Display
Mounting
Jumper Settings
Troubleshooting
Warranty

Frequently asked questions

What is the resistance of the sensor when disconnected at 25°C?

When disconnected from the control, the sensor will read 10K ohms at 25°C/77°F.

What does a continuously on "Pool" LED indicate?

It indicates a probable open circuit in the "POOL" sensor or wiring.

What does a flashing "Aux Sensor" LED indicate?

It indicates a probable short circuit in the "AUX" sensor or wiring.

What is the duration of the limited solar warranty?

Hayward warrants its Hayward solar products for 5 years from date of manufacture.
