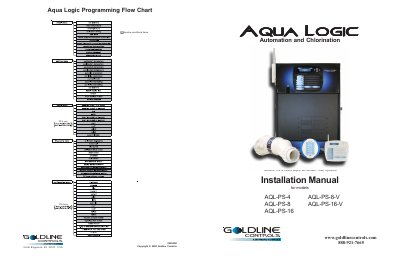

GOLDLINE CONTROLS Installation Manual for models AQL-PS-4 AQL-PS-8-V AQL-PS-8 AQL-PS-16-V AQL-PS-16

This document is the Aqua Logic Automation and Chlorination Installation Manual for models AQL-PS-4 AQL-PS-8-V AQL-PS-8 AQL-PS-16-V AQL-PS-16. The product is an intelligent control system that can automatically control the heating, filtration and chlorination of swimming pools, spas and hot tubs.

Brand: Goldline
Category: Other
Document type: Installation Guide
Language: English
Pages: 44
File format: PDF
File size: 1.7 MB
Published: 11 July, 2012
Updated: 30 September, 2023
Models: AQL-PS-4, AQL-PS-8, AQL-PS-16, AQL-PS-8-V, AQL-PS-16-V
MD5 checksum: 5E7A23965CCFAA7686798B4F2F078C60
PDF: GOLDLINE CONTROLS Installation Manual for models AQL-PS-4 AQL-PS-8-V AQL-PS-8 AQL-PS-16-V AQL-PS-16 PDF

About this manual

This manual provides installation instructions for the Goldline Controls Aqua Logic Automation and Chlorination system, specifically for models AQL-PS-4, AQL-PS-8-V, AQL-PS-8, AQL-PS-16-V, and AQL-PS-16. It covers essential safety precautions, general water chemistry preparation, and the mounting of the control center.

What's inside

Introduction
Before You Begin
Installation Steps
Preparing General Water Chemistry
Pool/Spa Water Salt
Mounting Aqua Logic Control Center
Equipment
Plumbing
Electrical
Configuration Group Function

Frequently asked questions

What safety precaution is required before installing the equipment?

You must disconnect all AC power during installation.

What is the maximum water temperature recommended for safety?

Water in excess of 100 degrees Fahrenheit may be hazardous to your health.

What size copper wire is required to connect the bonding lug to the common bonding grid?

You must use an insulated or bare copper conductor not smaller than 8 AWG US / 6 AWG Canada.
