Key facts
- Brand
- Goldline
- Model
- AQL-PS-8-V
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-11
Start here

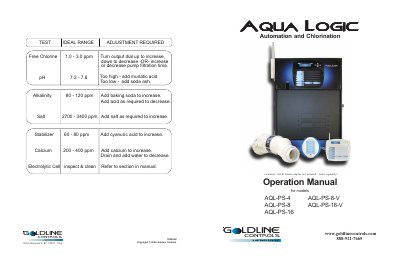

Goldline Controls Aqua Logic Automation and Chlorination Operation Manual for models AQL-PS-4 through AQL-PS-16
The document is an operation manual for the Goldline Controls Aqua Logic series of multifunction pool and spa controllers. It details how to use the device to manage pumps, valves, lighting, heaters, and chlorination systems in both manual and automatic modes.
Key topics include adjusting water chemistry parameters such as free chlorine, pH, alkalinity, salt levels, and calcium hardness. The guide also covers system maintenance procedures like servicing the electrolytic cell, winterizing the equipment, and troubleshooting common issues using diagnostic menus.
Goldline AQL-PS-8-V specifications
| Controlled Equipment Capacity (PS-4) | up to 4 high voltage pieces of equipment |
|---|---|
| Controlled Equipment Capacity (PS-8) | up to 8 high voltage pieces of equipment |
| Controlled Equipment Capacity (PS-16) | up to 16 high voltage pieces of equipment |
| Valve Actuators Capacity (PS-4) | up to 4 automatic valve actuators |
| Heater Capacity | 2 conventional heaters plus a solar heater |
All Goldline AQL-PS-8-V documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precaution is required before installing the equipment?
You must disconnect all AC power during installation.
From: GOLDLINE CONTROLS Installation Manual for models AQL-PS-4 AQL-PS-8-V AQL-PS-8 AQL-PS-16-V AQL-PS-16
What is the maximum water temperature recommended for safety?
Water in excess of 100 degrees Fahrenheit may be hazardous to your health.
From: GOLDLINE CONTROLS Installation Manual for models AQL-PS-4 AQL-PS-8-V AQL-PS-8 AQL-PS-16-V AQL-PS-16
What is the recommended range for free chlorine?
The manual indicates an ideal range of 1.0 - 3.0 ppm.
How do I adjust the pH level?
Turn the output dial up to increase pH and down to decrease it, targeting a range of 7.2 - 7.6.
