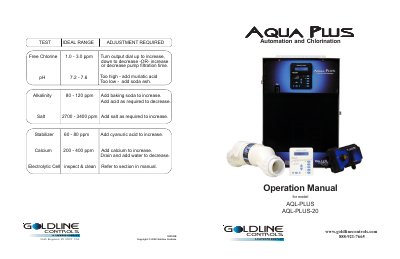

Goldline AQL-PLUS AQL-PLUS-20 Pool Automation Operation Manual

This document is Aqua Plus Automation and Chlorination Operation Manual user manual

Brand: Goldline
Category: Other
Document type: User Manual
Language: English
Pages: 40
File format: PDF
File size: 1.1 MB
Published: 11 July, 2012
Updated: 30 September, 2023
Model: AQL-PLUS-20
MD5 checksum: C51B33AB008A5201002D5364B5A01BDA
PDF: Goldline AQL-PLUS AQL-PLUS-20 Pool Automation Operation Manual PDF

About this manual

The Goldline Aqua Plus is a multifunction pool controller designed to manage pool and spa systems, including pumps, valves, lighting, heaters, and chlorination. It supports both manual and automatic (programmed) operation modes and can be controlled via a main display/keypad or optional remote displays.

What's inside

System Overview
Automation
Chlorination
Default Display
Manual System Operation
Automatic System Operation
System Maintenance
Winterizing
Troubleshooting
Warranty

Specifications

Controlled Equipment	up to 4 high voltage (120/240V) pieces of equipment
Valve Actuators	up to 3 automatic valve actuators
Heater Support	conventional and solar heater
Remote Displays	maximum of three

Frequently asked questions

What is the ideal range for free chlorine?

The ideal range for free chlorine is 1.0 - 3.0 ppm.

What is the ideal pH range?

The ideal pH range is 7.2 - 7.6.

What is the recommended alkalinity level?

The recommended alkalinity level is 80 - 120 ppm.

What is the ideal salt level?

The ideal salt level is 2700 - 3400 ppm.
