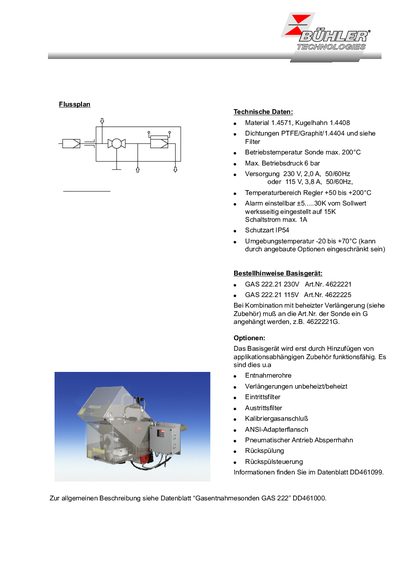

This document provides technical specifications for the Buhler Technologies GAS 222.21 gas extraction probe (Sonde). The device is designed with a material of 1.4571 and features a ball valve made of 1.4408, utilizing PTFE/Graphite seals. This manual is written in German.
| Probe Material | 1.4571 |
|---|---|
| Valve Material | 1.4408 |
| Seals Material | PTFE/Graphite |
| Max Operating Temperature (Probe) | 200°C |
| Max Operating Pressure | 6 bar |
| Supply Voltage (Option A) | 230 V, 2.0A, 50/60Hz |
| Supply Voltage (Option B) | 115 V, 3.8 A, 50/60Hz |
| Temperature Range (Controller) | +50 to +200°C |
| Alarm Setting Range | 5...30K from setpoint |
| Switching Current Max | 1A |
| Protection Class | IP54 |
| Ambient Temperature Range | -20 to +70°C |
The part number for the 230V version is Art.Nr. 4622221.
The part number for the 115V version is Art.Nr. 4622225.
Information on accessories is found in data sheet DD461099.
