1.61.046.XXX series DC gear motor, rated voltage 12V, 18V, 24V, power range 0.700-0.110W, motor speed range 35-420nN/min-1, maximum torque range 2.9-299.0mNm, can be modified according to needs, such as encoder, external demagnetization board, etc.

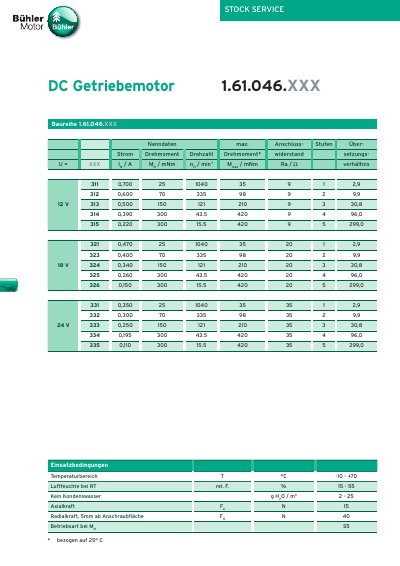

This document provides technical specifications for the Bühler 1.61.046.XXX series of DC gearmotors. It details nominal data including voltage, current, torque, and speed for various models within the series, covering 12V, 18V, and 24V configurations.
The datasheet also outlines the physical construction and material specifications, such as the zinc die-cast housing, copper collector, and sintered bronze bearings. It lists operating conditions like temperature range and humidity, along with available modifications for customer-specific applications. This manual is written in German.
| Operating Temperature Range | -25°C to +70°C |
|---|---|
| Relative Humidity | 15% to 55% |
| Axial Force | 15 N |
| Radial Force | 40 N |
| Housing Material | Zinc die-cast |
| Collector Material | Copper / 7-part |
| Insulation Class | H |
| Protection Class | IP40 |
| Commutation | Graphite/Copper-brush |
| Magnet System | Permanent magnets, 2-pole |
| Motor Bearings | 2 sintered bronze bearings |
The operating temperature range is from -25°C to +70°C.
The motor has a protection class of IP40.
Yes, modifications such as encoder installation, external filter mounting, and shaft contour changes are possible upon agreement.
