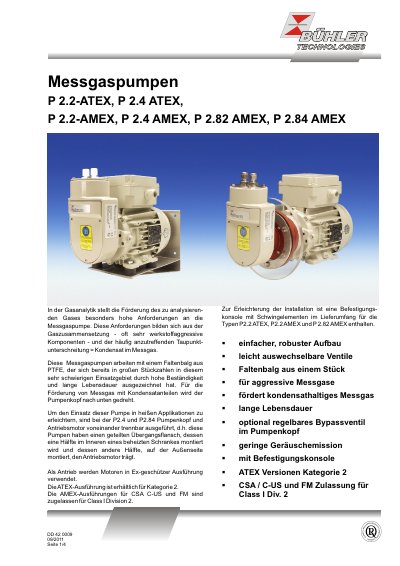

Bühler P 2.2/2.4/2.82/2.84 Measurement Gas Pump Product Leaflet

The document describes the features and characteristics of a product, but further analysis is needed to provide specific details.

Brand: Bühler
Category: Other Electronics
Document type: Product Leaflet
Language: German
Pages: 4
File format: PDF
File size: 878 KB
Published: 10 July, 2012
Updated: 29 September, 2023
MD5 checksum: 82D2DD0A96431513532A14F6D906840D
PDF: Bühler P 2.2/2.4/2.82/2.84 Measurement Gas Pump Product Leaflet PDF

About this manual

This document provides technical specifications and ordering information for Bühler measurement gas pumps, specifically the P 2.2, P 2.4, P 2.82, and P 2.84 models. These pumps are designed for gas analysis applications requiring high durability against aggressive components and condensate. They utilize a PTFE diaphragm and are available in ATEX (Europe) and AMEX (USA/Canada) certified versions for hazardous areas. This manual is written in German.

What's inside

Messgaspumpen
ATEX Typen
AMEX Typen
Forderleistung
Materialien
Bestellhinweise
Abmessungen
Einbauhinweise

Specifications

Diaphragm Material	PTFE
Total Volume	8.5 ml
Protection Class Electrical	IP 54
Protection Class Mechanical	IP 20
Operating Temperature Range	-20°C to 50°C
Certification	ATEX Category 2

Frequently asked questions

What is the diaphragm material used in these pumps?

The pumps use a diaphragm made of PTFE, which is noted for high stability and long life in difficult applications.

Are these pumps suitable for gases with condensate?

Yes, for pumping gas with condensate components, the pump head is designed to be rotated downwards.

What are the available motor voltages?

The motors are available in 115 V, 230 V, and 380-420 V configurations.
