This document is about the specification of STOCK SERVICE series products, mainly including rated data, no-load data, starting data, performance data, motor parameters, etc.

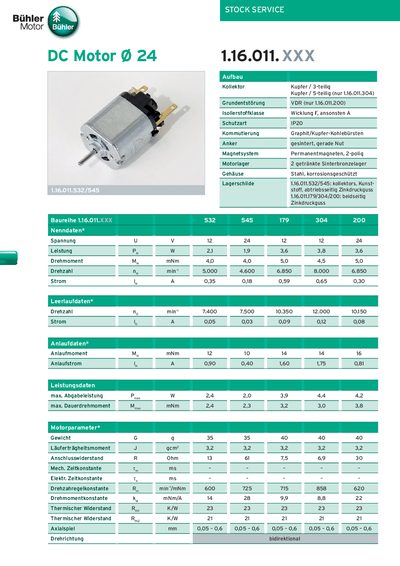

This document provides technical data for the Bühler 1.16.011.XXX series of DC motors. It details construction features such as the commutator, copper windings, and permanent magnet system. The series includes models with nominal voltages of 12V and 24V, offering power ratings between 3.6W and 3.8W. This manual is written in German.
| Nominal Voltage | 12 V, 24 V |
|---|---|
| Nominal Power | 3.6 W, 3.8 W |
| Nominal Torque | 4.0 mNm, 5.0 mNm |
| Nominal Speed | 5.000 min-1, 6.850 min-1 |
| Nominal Current | 0.35 A, 0.8 A |
| Protection Class | IP20 |
| Operating Temperature | -10 C to +70 C |
The nominal voltage is available in 12 V and 24 V configurations.
The motor has a protection class of IP20.
Yes, modifications such as adding an encoder or changing the winding for speed adjustment are possible by agreement.
