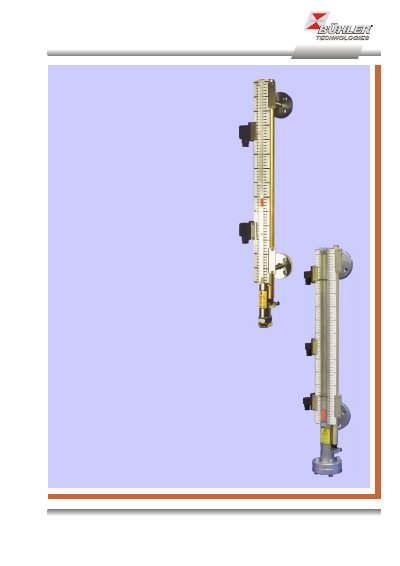

This document provides technical specifications for the Bühler NS 10..-AM and NS 25..-AM level switches designed for external mounting. It details operating limits such as pressure and temperature, material composition including floats and flanges, and dimensional data for various designs.
| Max. operating pressure (NS 10) | 10 bar |
|---|---|
| Max. operating temperature (NS 10) | 100°C |
| Min. spec. density of fluid (NS 10) | 0.75 kg/dm³ |
| Max. operating pressure (NS 25) | 25 bar |
| Max. operating temperature (NS 25) | 120°C |
| Min. spec. density of fluid (NS 25 SK 661) | 0.85 kg/dm³ |
| Min. spec. density of fluid (NS 25 SK 662) | 0.70 kg/dm³ |
| Operating voltage (transducer) | 10-30V DC |
| Output (transducer) | 4-20mA |
| Protection system | IP 65 |
The minimum specific density of fluid is 0.85 kg/dm³.
Contacts MKS-1/K and MKS-2/K are suggested for use in areas with strong vibrations.
The maximum load of the contact is 25 VA.
