Buhler 1.61.065.XXX Series DC Gear Motor Technical Data

STOCK SERVICE 1.61.065.XXX DC Gearmotor Datasheet

Brand: Bühler
Category: Motor
Document type: Datasheet
Language: German
Pages: 2
File format: PDF
File size: 286 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9F06D5E2D7A0D3F3FFF288180B0B246D

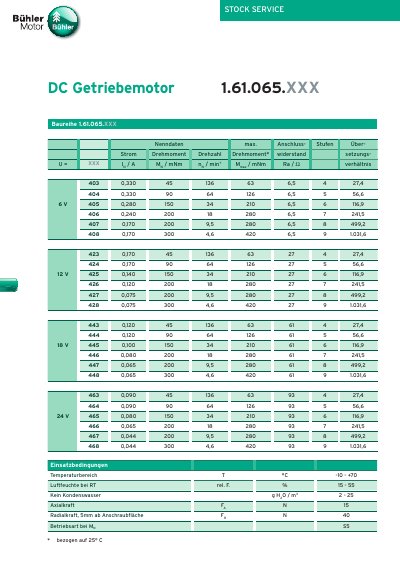

PDF: Buhler 1.61.065.XXX Series DC Gear Motor Technical Data PDF

About this manual

This document provides technical specifications for the Buhler 1.61.065.XXX series of DC geared motors. It details nominal data including voltage, current, torque, speed, and resistance for various configurations, alongside operating conditions such as temperature and humidity limits. This manual is written in German.

What's inside

Nenndaten
Einsatzbedingungen
Aufbau
Gewicht
Kundenspezifische Ausfiihrungen

Specifications

Weight	150g
Protection Class	IP20
Operating Temperature Range	10 - +70 °C
Relative Humidity	15-55 %
Axial Force	15 N
Radial Force	40 N
Motor Housing Material	Steel, corrosion protected

Frequently asked questions

What is the maximum operating temperature range for this motor?

The motor operates within a temperature range of 10 to +70 degrees Celsius.

What is the maximum axial force the motor can withstand?

The motor can withstand a maximum axial force of 15 Newtons.

What is the maximum radial force allowed at 5mm from the mounting surface?

The maximum radial force is 40 Newtons at 5mm from the mounting surface.
