RICOH RN5T561-0000 handbook

RN5T561-0000 is a power management system device launched by Ricoh Electronics. It has multiple functional modules and flexible application modes, which is suitable for various mobile terminals and smart home applications.

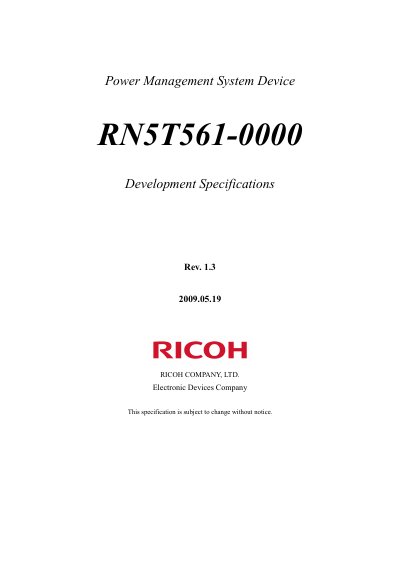

RICOH RN5T561-0000 handbook - cover page
Brand
Ricoh
Category
Power Management
Document type
Datasheet
Language
English
Pages
25
File format
PDF
File size
1.7 MB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
8FE3108A7D09D931E424DEA1BA5F4009

About this manual

The document provides development specifications for the Ricoh RNST561-0000 Power Management System Device. This integrated circuit combines power supply functions with control capabilities in a single chip, designed to manage various voltage rails efficiently.

Key features include one step-down DC/DC converter and four Low Dropout (LDO) regulators. The device allows for programmable ON/OFF control via the I2C-Bus interface, supporting PWM control and adjustable output voltages through external resistors. It also incorporates an Under Voltage Lock Out (UVLO) circuit to monitor input voltage levels.

What's inside

  • Outline
  • Feature
  • Pin Configuration
  • Block Diagram
  • Pin Description
  • Power On/Off Control
  • Functional Blocks
  • Electrical Characteristics
  • Package Information

Specifications

Converter TypeOne Step-down DC/DC converter
LDO RegulatorsFour LDO Regulators
InterfaceI2C-Bus (Max 400kHz)
Slave Address32h
Package Type16pin QFN package
Body Size3 x 3 x 0.85mm
Pin Pitch0.4mm

Frequently asked questions

What is the slave address for the RNST561-0000?

The slave address is set to 32h.

How many LDO regulators are included in this device?

The device contains four LDO Regulators.

What is the maximum clock speed for the I2C-Bus interface?

The maximum frequency for the I2C-Bus is 400kHz.
