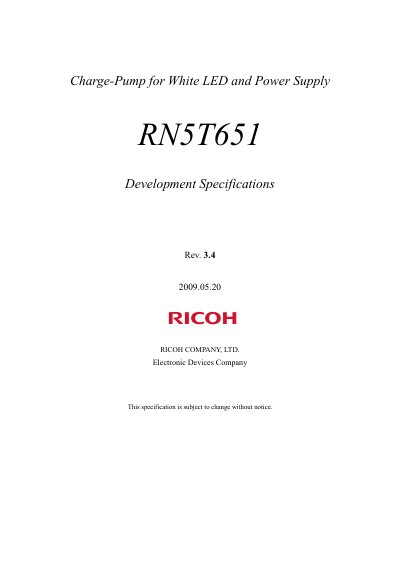

This document is about the development specifications of RN5T651 Charge-Pump for White LED and Power Supply. It describes the features and characteristics of the product.
The RNST651 is an integrated circuit designed to optimize power supply for white LED applications. It combines a constant frequency charge pump, a step-down DC/DC converter, and two low-noise Low Dropout (LDO) regulators into a single 28-pin Thin QFN package.
| Charge Pump Current Capability | 450mA |
|---|---|
| Flash Current Max | 300mA |
| Main LED Current Max | 25mA |
| Sub LED Current Max | 25mA |
| I2C-Bus Frequency | 400kHz |
| Package Type | 28pin Thin QFN |
| Body Size | 4 x 4x 0.8mm |
The charge pump supports a maximum current capability of 450mA.
The flash function operates at a maximum of 300mA.
