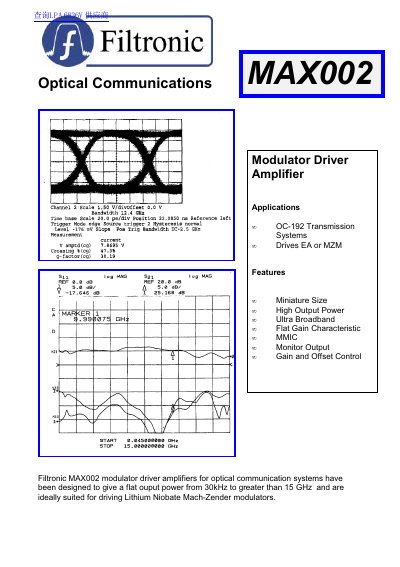

The Filtronic MAX002 modulator driver amplifiers are designed for optical communication systems and provide a flat output power from 30kHz to greater than 15 GHz. They are ideally suited for driving Lithium Niobate Mach-Zender modulators. The amplifier features a miniature size, high output power, ultra broadband capability, flat gain characteristic, MMIC technology, monitor output, and gain and offset control.
The Filtronic MAX002 is a Modulator Driver Amplifier designed for optical communication systems. It is an MMIC device intended to drive Lithium Niobate Mach-Zender modulators, providing a flat output power from 30 kHz to greater than 15 GHz. The unit features a miniature size, high output power, and ultra-broadband capabilities.
| Frequency | 30kHz — 15GHz |
|---|---|
| Gain | 10 — 20 dB (adjustable) |
| Gain Flatness | +/-2.5 dB to 10GHz |
| Output Power (1dB) | 20 dBm minimum |
| Group Delay Variation | +/-25ps |
| Input Return Loss (typical) | 12 dB (30kHz-10GHz) |
| Power Supply | +11V @500mA |
| Operating Temperature | -5 to +70 C |
| Size | 36 x24 x10 mm approx |
It is ideally suited for driving Lithium Niobate Mach-Zender modulators.
The unit operates from 30kHz to 15GHz.
The output power is a minimum of 20 dBm.
The device requires +11V at 500mA and -5V at 15mA.
