FMA411 is a low-noise MMIC amplifier from Filcs. It works in the 8.5-14.0GHz band, has a noise figure of 2.6dB, a small-signal gain of 18dB, an output power of 17.5dBm, and a single supply voltage of +6V. It can also be adjusted to work with different currents.

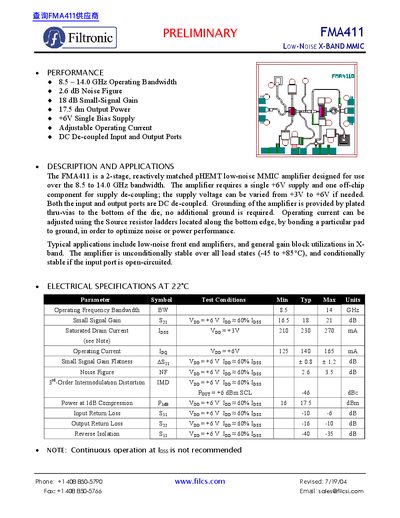

The FMA411 is a 2-stage, reactively matched pHEMT low-noise monolithic microwave integrated circuit (MMIC) amplifier designed for use over an 8.5 to 14.0 GHz bandwidth. It requires a single +6V supply and features DC de-coupled input and output ports. The device is unconditionally stable over all load states within the -45 to +85°C temperature range.
| Operating Frequency Bandwidth | 8.5 to 14 GHz |
|---|---|
| Noise Figure | 2.6 dB |
| Small-Signal Gain | 18 dB |
| Output Power at 1dB Compression | 17.5 dBm |
| Supply Voltage | +6V Single Bias Supply |
The amplifier operates from -45 to +85°C.
Yes, it is unconditionally stable over all load states within its operating temperature range.
