R5533V is a standard type PCMCIA power controller, which has low ON resistance Nch MOSFET switch, built-in over current limit protection function, built-in thermal shutdown protection, open drain flag pin, break-before-make switching and SSOP-16 pin package, which can be applied to PC card power switch, card slot power control and PC card reader / writer, etc.

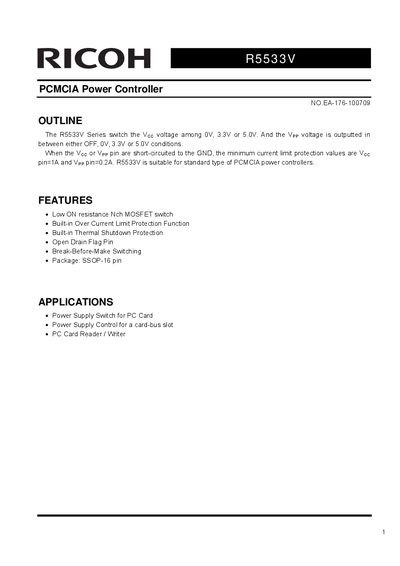

The document describes the R5533V Series, a PCMCIA Power Controller designed to switch Vcc voltage among 0V, 3.3V, or 5.0V, with Vpp output conditions of OFF, 0V, 3.3V, or 5.0V. The device utilizes low ON resistance Nch MOSFET switches and includes built-in Over Current Limit Protection Function and Thermal Shutdown Protection.
| Package Type | SSOP-16 pin |
|---|---|
| Ambient Temperature Range | -40 to 85 °C |
| Storage Temperature Range | -55 to 125 °C |
| Supply Current (Sleep Mode) | 0.2 mA (Typ.) |
| Short Current Limit (Vcc) | 1 A |
| Thermal Shutdown Temperature | 140 °C |
The device features low ON resistance Nch MOSFET switches, built-in Over Current Limit Protection Function, and Built-in Thermal Shutdown Protection.
The R5533V comes in an SSOP-16 pin package.
